Bay Street House Plan 2219

  • 2219 Sq Ft.
  • 1 Stories
  • 4 Bedrooms
  • 46-10 Width
  • 3 Bathrooms
  • 90-6 Depth

Options What's Included?


Need Modifications?
Share
  • Facebook
  • Gplus
  • Pinterest
  • mail

About This House:

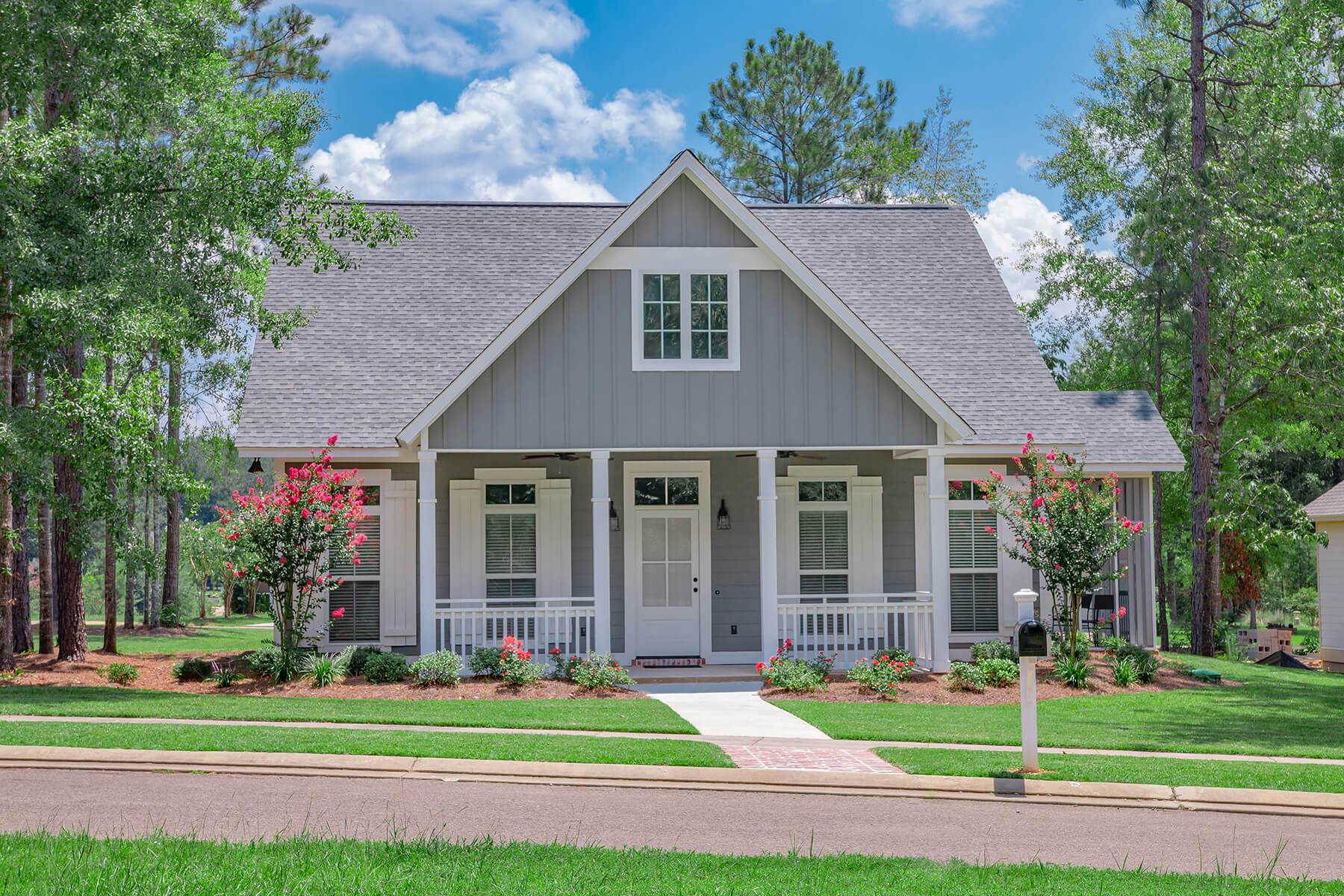

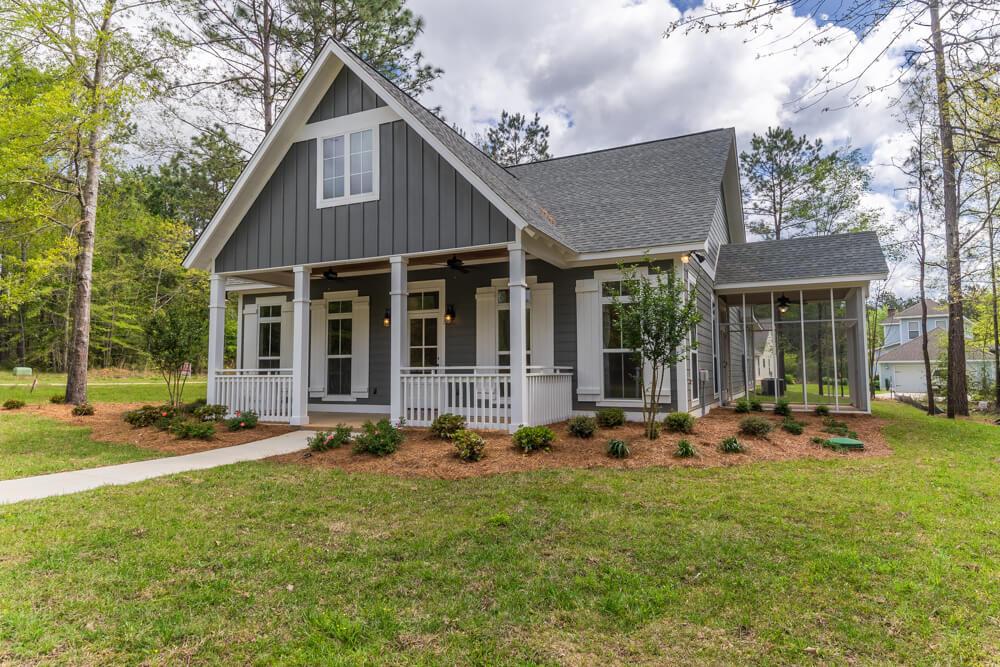

This wonderful narrow lot traditional home offers 4 large bedrooms with three full baths. The wide open living, dining and kitchen create an amazing open feeling that is great for enjoying time with family and friends. The large kitchen offers miles of counter space and storage. The utility room is enormous and offers a sink, counter space and broom closet. The master suite is luxurious and roomy. The screened porch offers an additional entertaining space or that area for just relaxing on those cool and sunny days.

Click Here to Print or Download PDF Flyer



Bay Street Floor Plan

Finished (Heated and Cooled) Areas
Heated Area Main Floor 2019
Heated Area Second Floor 0
Total Finished Square Footage 2019
Unfinished (unheated) Areas
Front Porch 176
Rear Porch 135
Other Porches 0
Garage 506
Storage 0
Bonus Room 0
Other 0
Total Unfinished Square Footage 817



Additional Plan Specs
Primary Roof Pitch 8:12
Other Roof Pitches 12:12

Pricing Options:

  1. PDF Files – Electronic, read only, copy of plans that gives the right to make multiple copies and includes a license to build the structure one time. Files are typically emailed (no printed sets will be shipped). This package allows the user the right to modify the plans. Any derivative work of this plan is still protected under federal copyright laws.
  2. CAD Files – Electronic files in .DWG format, "Version Varies", are provided for use by a local designer/architect/engineer to make minor to major alterations and these files are typically emailed directly to the customer (no printed sets will be shipped). This package includes a license to modify, reproduce and build unlimited homes, "Unlimited Use License".
  3. 5 Sets of Plan – Five sets of plans printed and mailed directly to you and includes a license to build the structure one time.

Important Information:

All Sales are Final. Due to copyright laws and the ability to copy plans, your plans can not be returned once your order has been placed. If you would like assistance in selecting your home plan before you order, please contact our customer service center. We will work hard to make your home plan buying experience a success.

These plans are NOT stamped by a structural engineer or registered architect and were designed to meet the current building code at the time of their design, such as the International Residential Code. Due to regional requirements such as: high wind areas, seismic conditions, soil conditions, snow loads and other specific circumstances, we encourage you to consult with an engineer or architect familiar with conditions in your area prior to building. In addition, local building departments may require that the plans be reviewed and/or modified to comply with local requirements. Please contact your local building department before placing your order.
