Finished Areas (Heated and Cooled)
Heated Area Main Floor/Unit | 661 |
Heated Area Second Floor/Unit | 920 |
Finished Square Footage/Unit | 1581 |
| Total Square Footage/Triplex | 4743 |
Unfinished Areas (unheated)
Front Porch/Unit | 85 |
Rear Porch/Unit | 0 |
Other Porches/Unit | 0 |
Garage/Unit | 324 |
Storage/Unit | 0 |
Bonus Room/Unit | 0 |
Other/Unit | 0 |
Unfinished Square Footage/Unit | 409 |
| Total Unfinished Footage/Building | 1227 |
Additional Plan Specs
Primary Roof Pitch | 7:12 |
Other Roof Pitches | 4:12, 5:12 |
| Roof Peak Height | 29-6 |

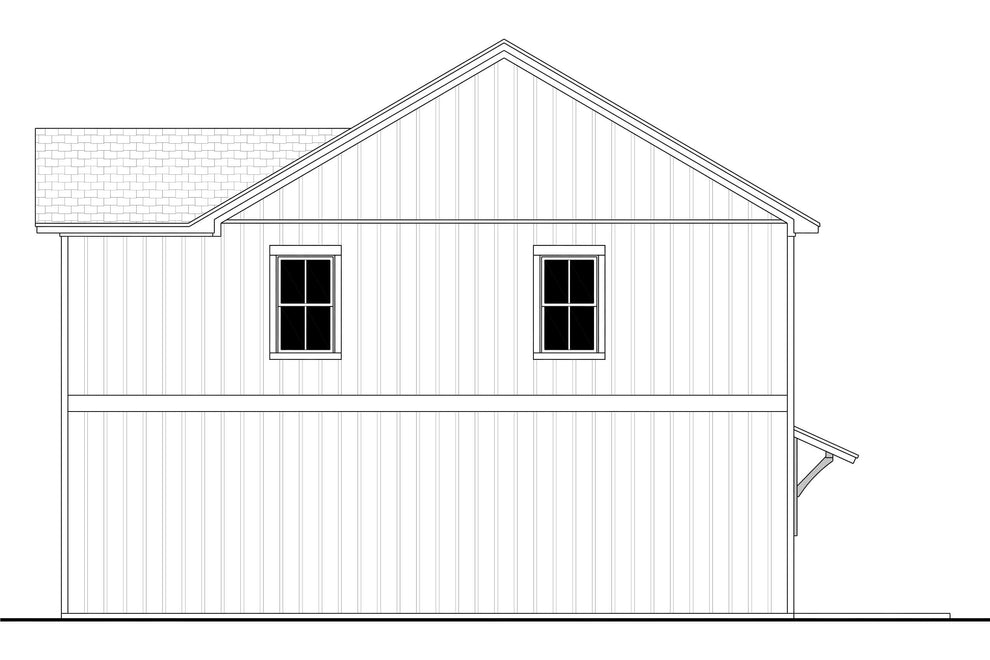

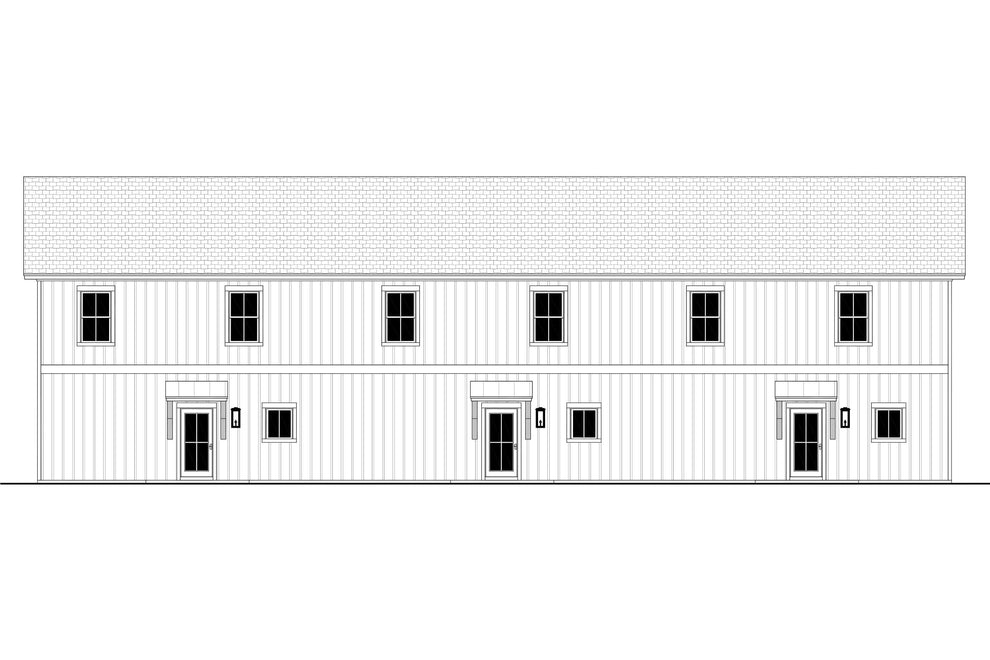

Millbranch Triplex Plan
Millbranch Triplex Plan
SKU:4743
-
4743 Sq Ft.
-
2
Stories
-
9
Beds
-
6
Baths
-
88-6 Width
-
37-6 Depth
