Northern Pine Duplex Plan

Northern Pine Duplex Plan 2196

  • 2196 Sq Ft.
  • 1 Stories
  • 4 Bedrooms
  • 59-0 Width
  • 4 Bathrooms
  • 57-4 Depth

Options What's Included?

Floor Plans
Finished Areas (Heated and Cooled)


Heated Area Main Floor

2196

Heated Area Second Floor

0

Total Finished Square Footage

2196
Unfinished Areas (unheated)


Front Porch

152

Rear Porch

152

Other Porches

0

Garage

659

Storage

86

Bonus Room

0

Other

0

Total Unfinished Square Footage

2196
Additional Plan Specs


Primary Roof Pitch

4:12

Other Roof Pitches

7:12

Roof Peak Height18-0


Pricing Options:

  1. PDF Files (Single Use and Unlmited Use Available)

    Electronic, read only, copy of plans that gives the right to make multiple copies and includes a license to build the structure one time for single use license and unlimited times for unlimited use license. Files are typically emailed (no printed sets will be shipped). This package allows the user the right to modify the plans. Any derivative work of this plan is still protected under federal copyright laws.

  2. CAD Files

    Electronic files in .DWG format, "Version Varies", are provided for use by a local designer / architect / engineer to make minor to major alterations and these files are typically emailed directly to the customer (no printed sets will be shipped). This package includes a license to modify, reproduce and build unlimited homes, "Unlimited Use License".

  3. 5 Sets of Plan Plus PDF File

    Five sets of plans printed and mailed directly to you and includes a license to build the structure one-time. You will also receive PDF files with this package that will be emailed to you.

Important Information:

All Sales are Final. Due to copyright laws and the ability to copy plans, your plans can not be returned once your order has been placed. If you would like assistance in selecting your home plan before you order, please contact our customer service center. We will work hard to make your home plan buying experience a success.

These plans are NOT stamped by a structural engineer or registered architect and were designed to meet the current building code at the time of their design, such as the International Residential Code. Due to regional requirements such as: high wind areas, seismic conditions, soil conditions, snow loads and other specific circumstances, we encourage you to consult with an engineer or architect familiar with conditions in your area prior to building. In addition, local building departments may require that the plans be reviewed and/or modified to comply with local requirements. Please contact your local building department before placing your order.

__________________________________________________________

Below you will find a listing of the typical items found:

  1. Cover Sheet – May include index, front view of home, definitions, etc.
  2. Foundation Plan – Typically includes dimensioned foundation plan with footing details.
  3. Dimensioned Floor Plan – Electrical may be shown.

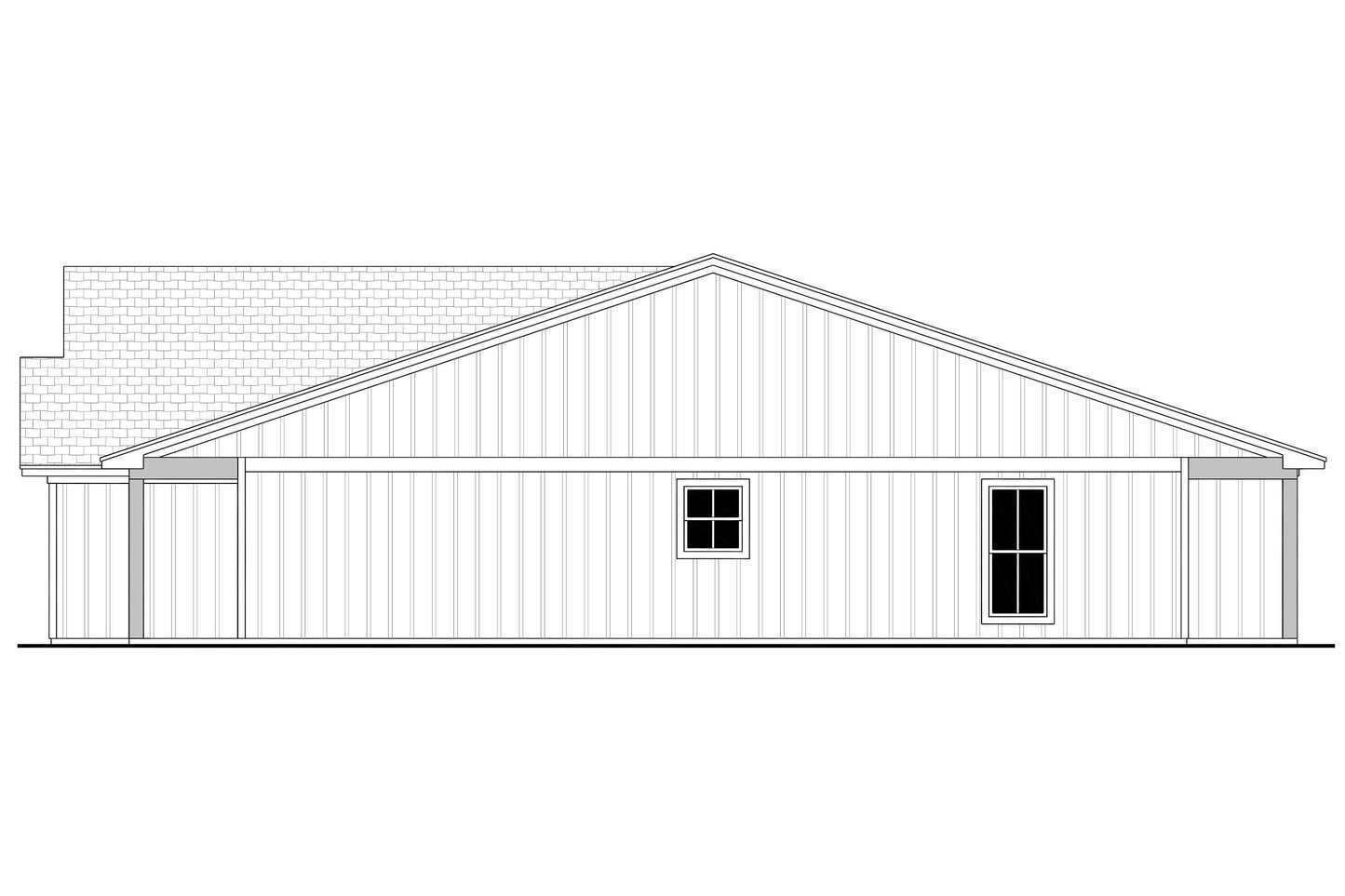

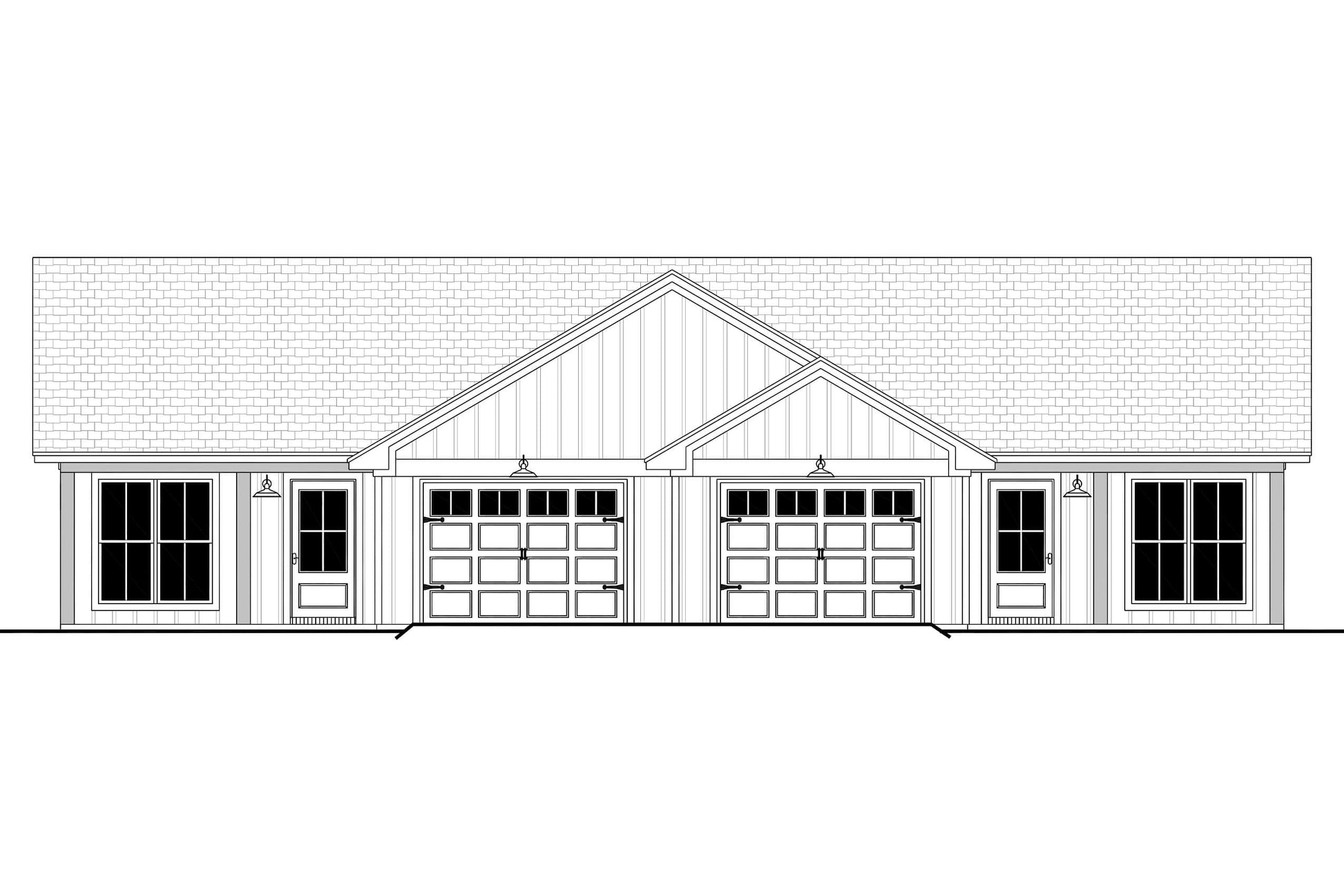

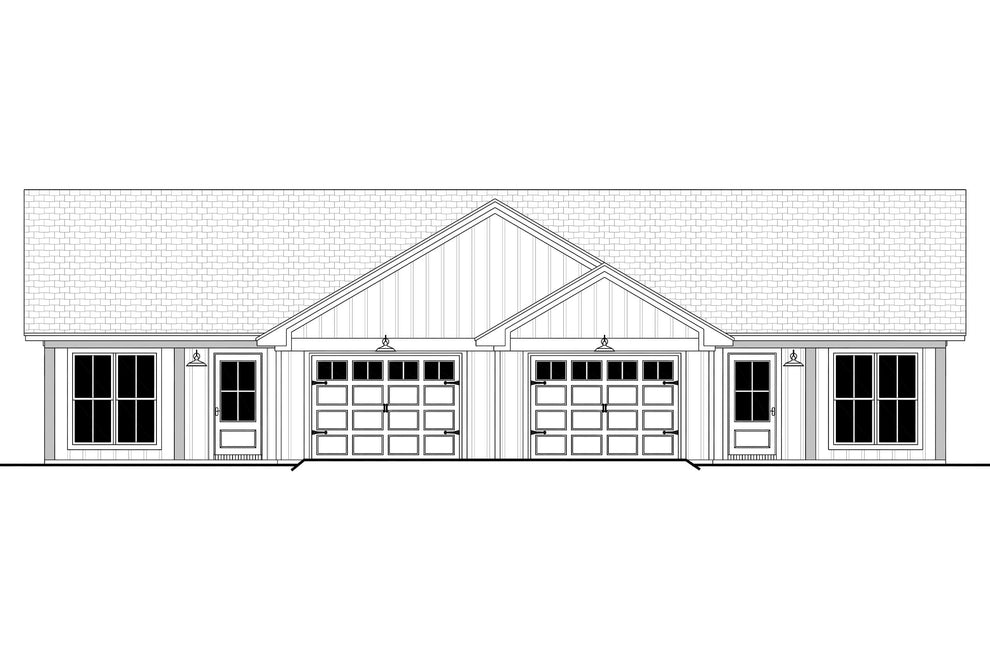

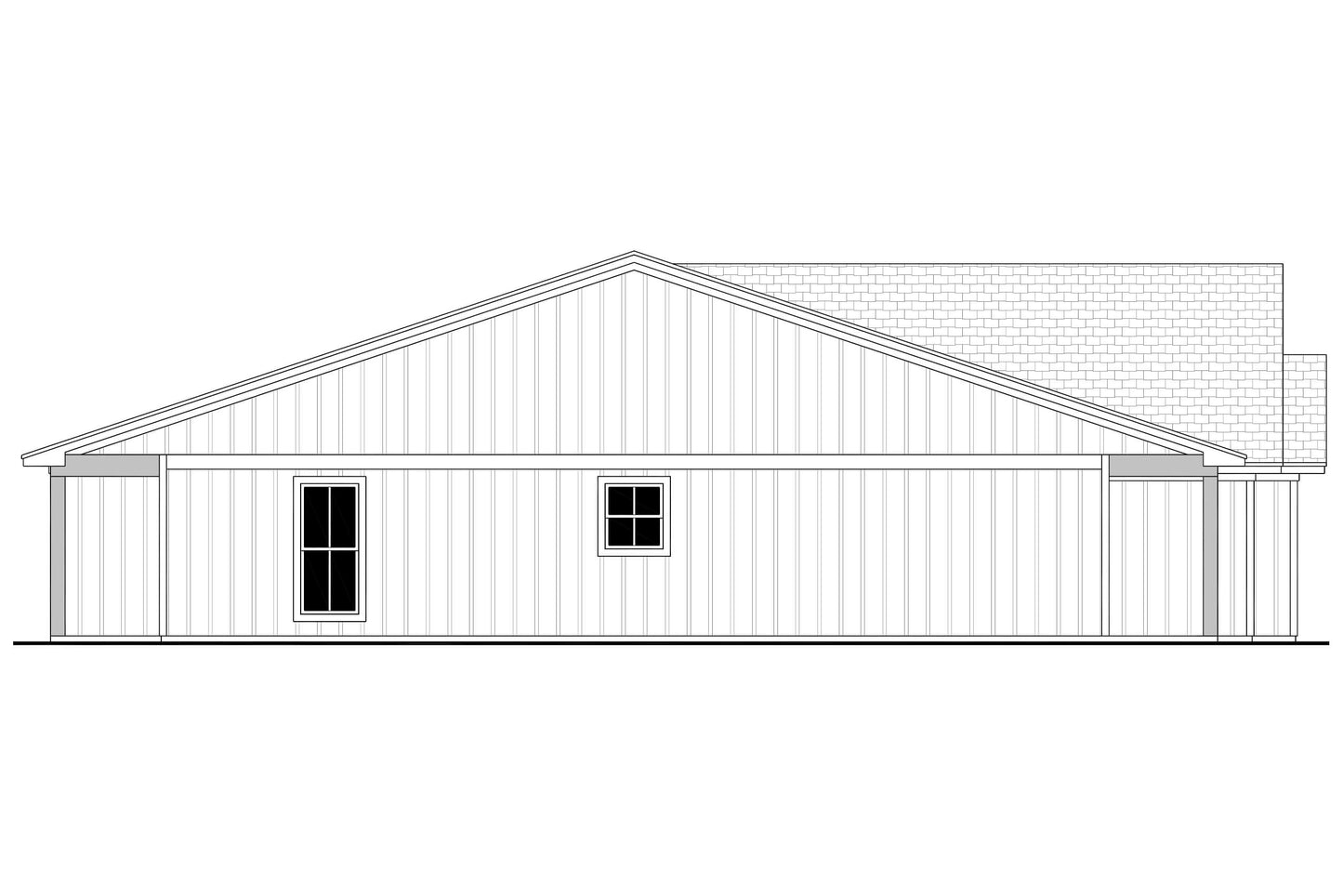

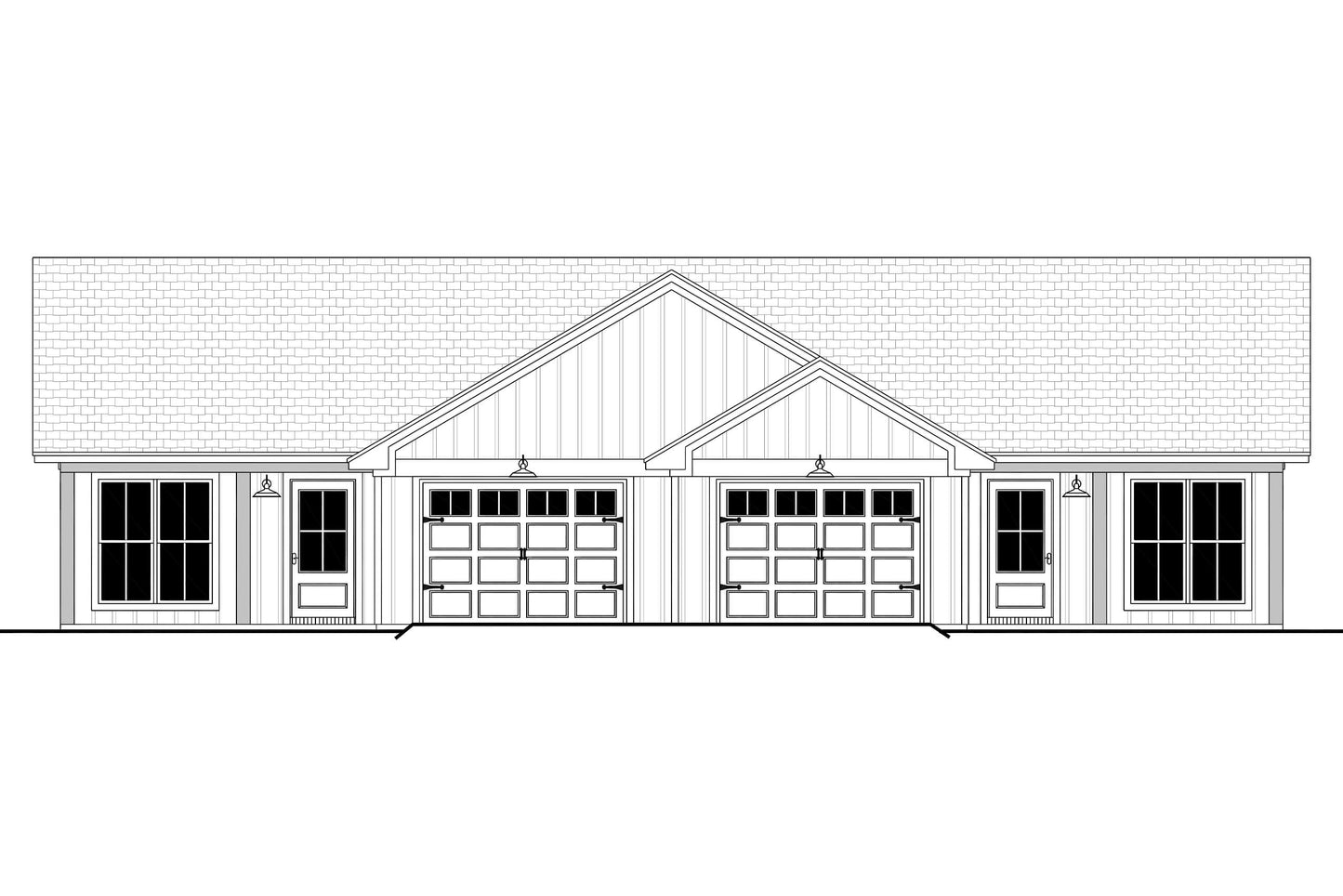

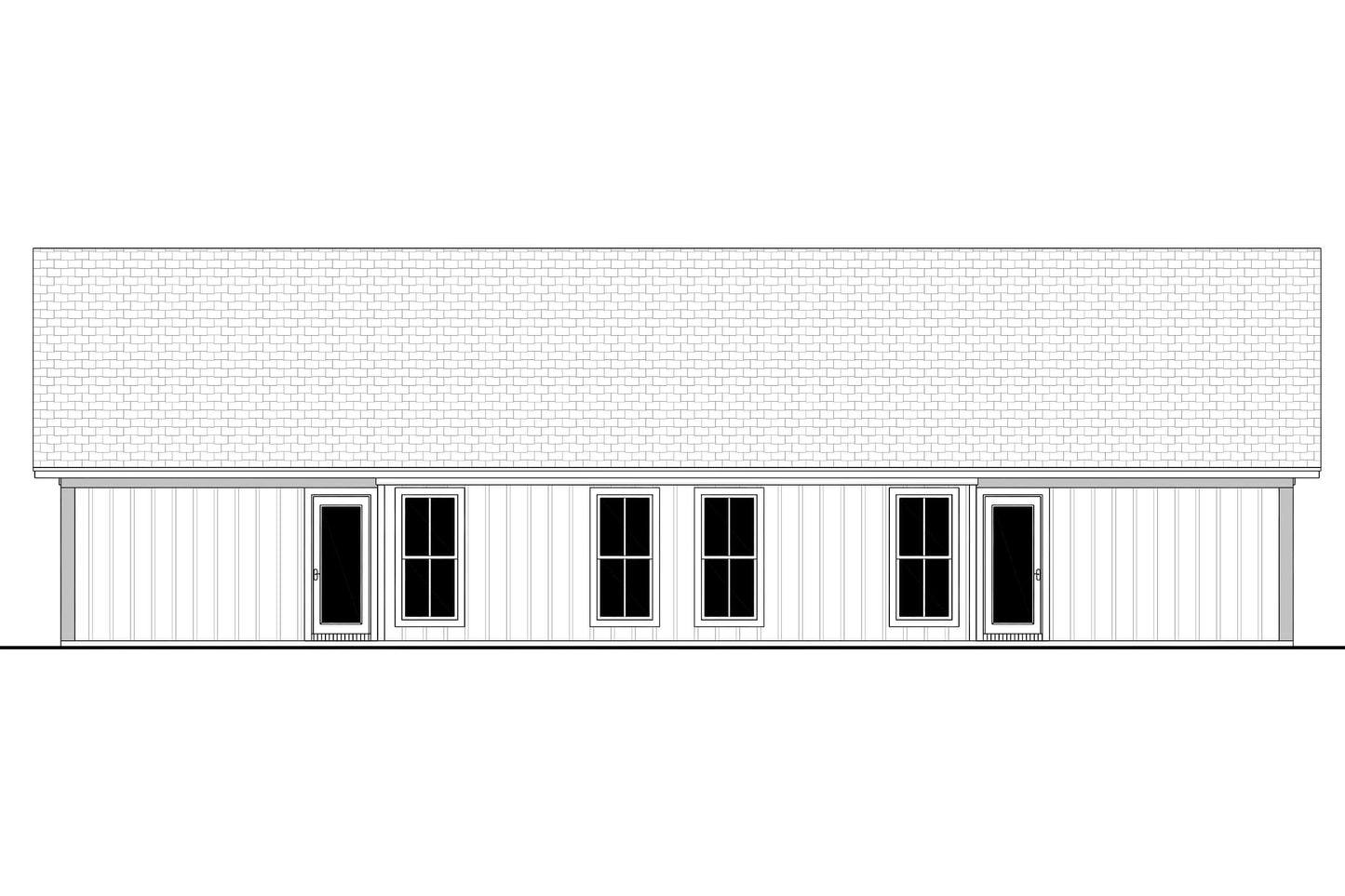

  4. Exterior Views – Four exterior views of the residence with other miscellaneous details.
  5. Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
  6. Electrical Plan – Displays lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches are NOT shown and should be located by contractor at site.
  7. Wall Section(s) – Detail of wall materials and assembly.
  8. Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
  9. Cabinet Elevations – Displays interior kitchen cabinet views.
  10. Blank Specifications – Specifications guide for the purchaser and their builder to complete. Not available on all plans.

*Note: The items listed above as “Not available on all plans” are not always required for every plan depending on location and complexity.
