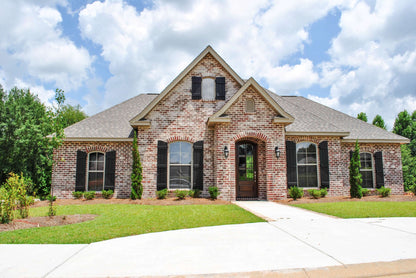

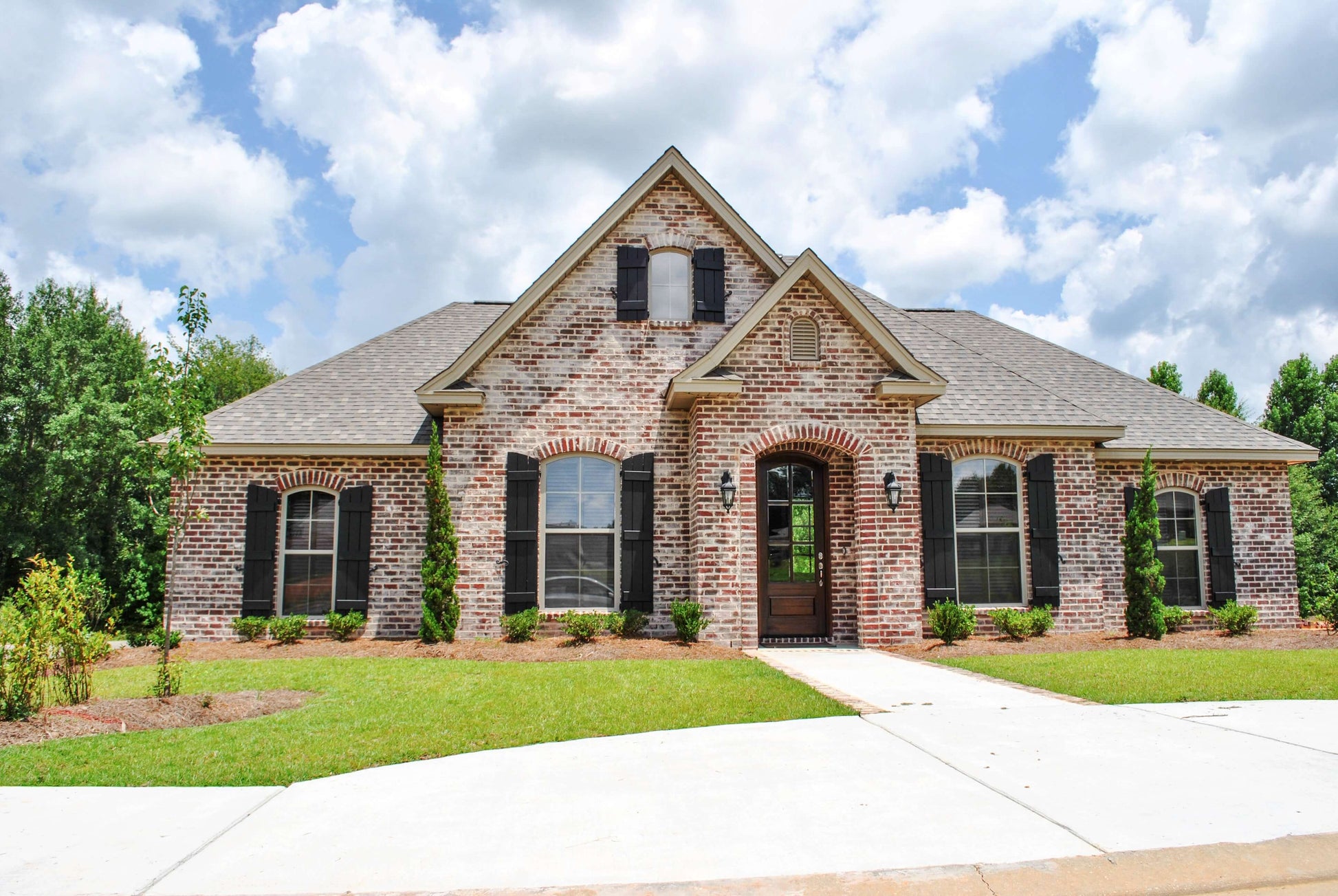

This beautifully designed home has 3 large bedrooms, an open living area, formal dining, and a large rear porch. The great room has a gas fireplace, and views into the kitchen and dining area. The kitchen is large and inviting with a large walk-in pantry, lots of counter space and cabinets for storage, and a sitting area off the raised bar area. The master suite offers dual sinks, enclosed toilet room, large jet tub, separate shower, and a large walk-in closet. With all the amenities and many more, this plan is sure to be perfect for you.


Smithfield Floor Plan

Smithfield Basement Stair Location

Finished (Heated and Cooled) Areas
Heated Area Main Floor 1715
Heated Area Second Floor 0
Total Finished Square Footage 1715
Unfinished (unheated) Areas
Front Porch 38
Rear Porch 222
Other Porches 0
Garage 484
Storage 38
Bonus Room 0
Other 0
Total Unfinished Square Footage 778


Additional Plan Specs
Primary Roof Pitch 12:12
Other Roof Pitches 8:12, 13:12

Pricing Options:

  1. PDF Files

    Electronic, read only, copy of plans that gives the right to make multiple copies and includes a license to build the structure one time. Files are typically emailed (no printed sets will be shipped). This package allows the user the right to modify the plans. Any derivative work of this plan is still protected under federal copyright laws.

  2. CAD Files

    Electronic files in .DWG format, "Version Varies", are provided for use by a local designer / architect / engineer to make minor to major alterations and these files are typically emailed directly to the customer (no printed sets will be shipped). This package includes a license to modify, reproduce and build unlimited homes, "Unlimited Use License".

  3. 5 Sets of Plan

    Five sets of plans printed and mailed directly to you and includes a license to build the structure one time.

Important Information:

All Sales are Final. Due to copyright laws and the ability to copy plans, your plans can not be returned once your order has been placed. If you would like assistance in selecting your home plan before you order, please contact our customer service center. We will work hard to make your home plan buying experience a success.

These plans are NOT stamped by a structural engineer or registered architect and were designed to meet the current building code at the time of their design, such as the International Residential Code. Due to regional requirements such as: high wind areas, seismic conditions, soil conditions, snow loads and other specific circumstances, we encourage you to consult with an engineer or architect familiar with conditions in your area prior to building. In addition, local building departments may require that the plans be reviewed and/or modified to comply with local requirements. Please contact your local building department before placing your order.
